Continuously filled beverage containers are inspected to detect defects on the production line.
A wide range of liquid levels can be inspected, from the top of the cap to below the neck ring, and the inspection conditions can be easily changed by touch screen.
The fluid level in each container is obtained by averaging a number of measurements, ensuring a reliable result even in the presence of vibration or other interference.
Installation of a networking unit enables connection to an automation network at the plant.
Supports remote operation, counter, alarm output, device operation monitoring, and more.
Supports a processing capacity of 2,000 containers/minute.
Inspection settings can be registered in advance for each type of container.
Switching between products or starting operation can be performed by touchscreen.
The filled amount of each valve can be monitored via the filler output signal.
| Item | Specifications | ||
|---|---|---|---|
| MLS-35A | MLS-15R3 | ||
| Container Types | Cans, cardboard packs, and metal, PET or glass bottles |
||
| Processing capacity [CPM] | 2,000 | 900 (2,000) | |
| Power supply | Phase | single phase | |
| Voltage | AC220 / 200 / 100V | ||
| Frepuency | 50 /60Hz | ||
| Capacity | 1.5kVA or more | 1.0kVA or more | |
| Power supply fluctuation | ±10% or less | ||
| Grouding | T-T (as specified in IEC 60364) | ||

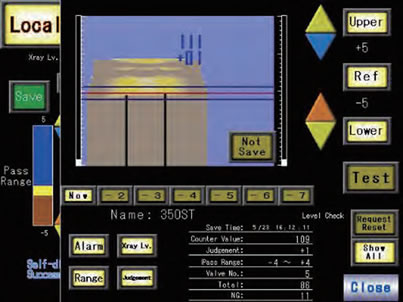

MLS-35A operation screen
(Available in other languages)

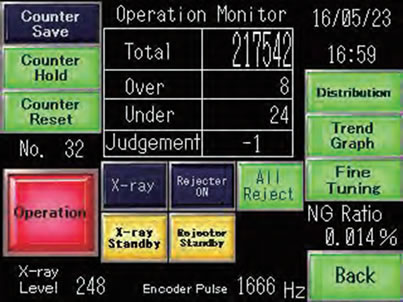

MLS-15R3 operation screen
(Available in other languages)

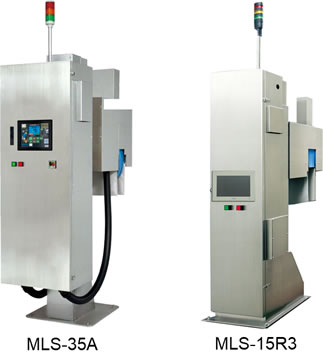

MLS-35A
MLS-15R3
